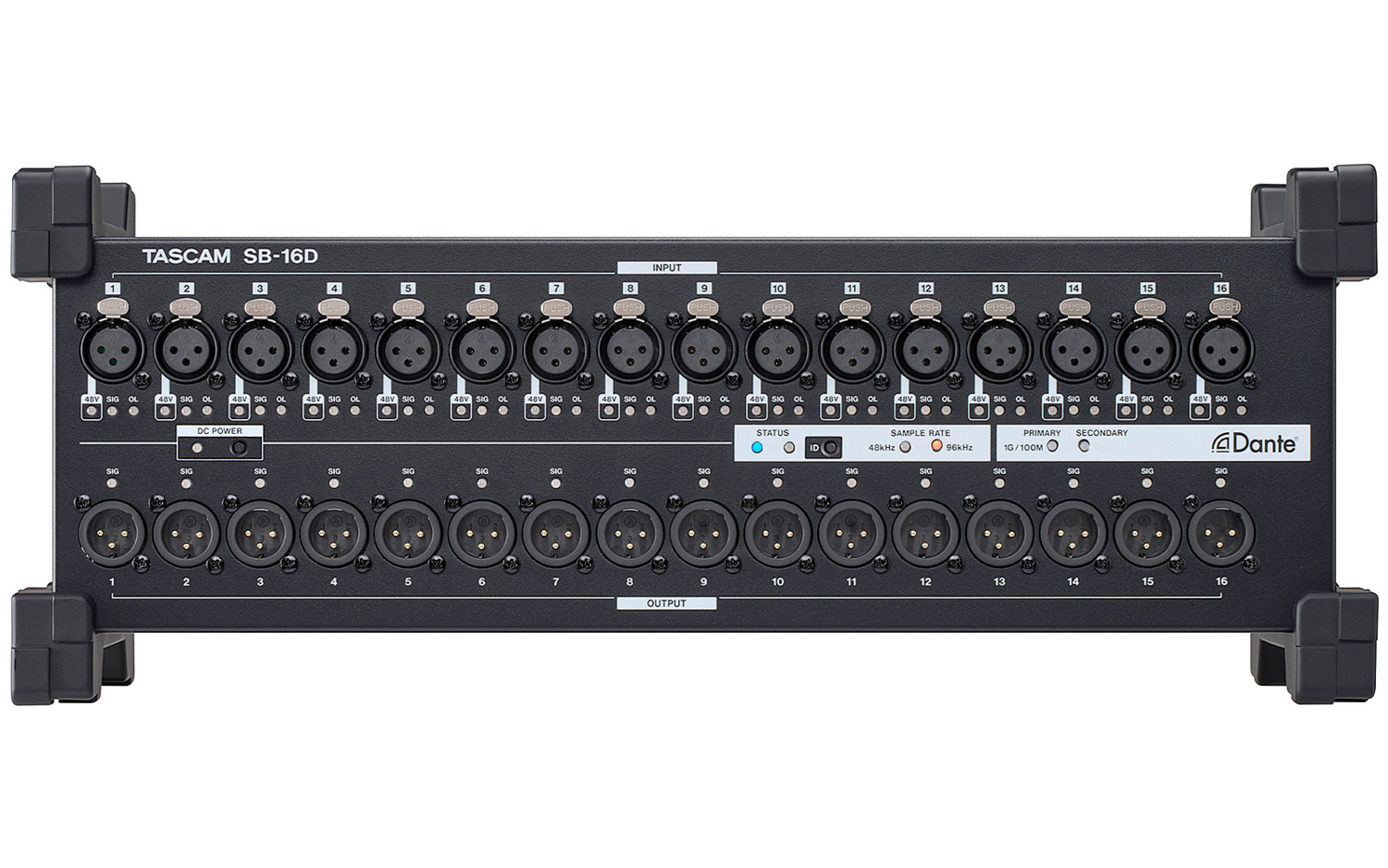

Tascam SB-16D Dante Stage Box (16-in/16-out)

Product Details

Dante-enabled stage box and interface with 16 analogue audio inputs and outputs
Redundant Dante operation using Primary/Secondary lines
Equipped with etherCON-compatible connectors
Support for Dante Domain Manager
AES67 is supported to allow connection with Ravenna and other compatible audio network technologies
Data transfer compliant to SMPTE 2110
16 balanced mic/line inputs (XLR) with switchable phantom power (48 V), input signal and overload indicators
16 balanced line outputs (XLR) with output signal indicators

Up to 96 kHz sampling frequency at 32-bit resolution
Can be positioned on the floor or mounted in a rack (3U)
Fully controllable from connected Sonicview mixer
Remote control and offline editing using Tascam IO Control software for Windows, macOS and iPadOS
Selectable reference level
GPIO interface with eight inputs and outputs, expands to 16 inputs and outputs when connected to a Sonicview mixer
Selectable LED brightness
DC input for redundant power supply (DC power supply not included)

Analogue audio inputs and outputs
Mic/Line inputs (balanced, INPUT 1–16)	XLR-3-31 (1: GND, 2: HOT, 3: COLD)
Maximum input level	+12 dBu (TRIM at minimum, Pad off) +32 dBu (TRIM at minimum, Pad on)
Minimum input level	–62 dBu (TRIM at maximum, Pad off) –42 dBu (TRIM at maximum, Pad on)
Input impedance	≥5 kΩ
Line outputs (balanced, OUTPUT 1–16)	XLR-3-32 (1: GND, 2: HOT, 3: COLD)
Maximum output level (selectable)	+15 dBu (Ref(D): –9 dBFS, Ref(A): +6 dBu) +18 dBu (Ref(D): –14 dBFS, Ref(A): +4 dBu) +20 dBu (Ref(D): –16 dBFS, Ref(A): +4 dBu) +18 dBu (Ref(D): –18 dBFS, Ref(A): 0 dBu) +20 dBu (Ref(D): –20 dBFS, Ref(A): 0 dBu) +22 dBu (Ref(D): –18 dBFS, Ref(A): +4 dBu) +24 dBu (Ref(D): –20 dBFS, Ref(A): +4 dBu)
Nominal output level (selectable)	+6 dBu (Ref(D): –9 dBFS) +4 dBu (Ref(D): –14 dBFS, –16 dBFS) +4 dBu or 0 dBu (Ref(D): –18 dBFS, –20 dBFS)
Output impedance	≤100 Ω

Digital audio inputs and outputs
Dante PRIMARY/SECONDARY	etherCON Cat5e compatible
Number of audio channels	64 channels (48 kHz) 32 channels (96 kHz)
Supported modes	Redundant mode, Switched mode
Compatible standard	Gigabit Ethernet (1000BASE-T, IEEE 802.3ab)
Recommended cables	Cat5e STP or better

Control inputs and outputs
GPIO	25-pin D-sub (8-in/8-out, female, inch-standard)
Input circuit	Pull-up (5 V)
Output circuit	Open collector Output impedance: 10 Ω Voltage resistance: 20 V Maximum output current: 35 mA
Maximum supply current (+5 V)	50 mA

Audio performance
Mic amp EIN (equivalent input noise)	≤–128 dBu
Frequency response (Mic/Line or Dante input to Line output)	20 Hz – 20 kHz: +0 dB, –0.5 dB (48 kHz, JEITA) 20 Hz – 40 kHz: +0 dB, –1.0 dB (96 kHz, JEITA)
Dynamic range	≥110 dB (Mic/Line input to Dante output, PAD off, TRIM min., Ref(D) –20 dBFS, JEITA) ≥111 dB (Dante input to Line output, 48 kHz, JEITA) ≥112 dB (Dante input to Line output, 96 kHz, JEITA)
Distortion	≤0.002 % (Mic/Line input to Dante output, +4 dBu input signal, PAD off, TRIM min., JEITA) ≤0.002 % (Dante input to Line output, 0 dBFS output, JEITA)
Crosstalk	≥–100 dB (Mic/Line input to Line output, 1 kHz sine wave, JEITA)
Remark: 0 dBu = 0.775 Vrms⁪⁯⁮⁭ Ref(D): Digital Reference Level

Power supply and other specifications
AC power supply	AC 100–240 V, 50/60 Hz
DC power supply	DC 11 V / 4 A to DC 27 V / 2 A
Power consumption	44 W
Overall dimensions (width × height × depth)	Feet attached: 454 mm × 140 mm × 180 mm Rack ears attached: 483 mm × 132 mm × 120 mm
Weight	4.5 kg
Permissible operating temperature range	0–40 °C
