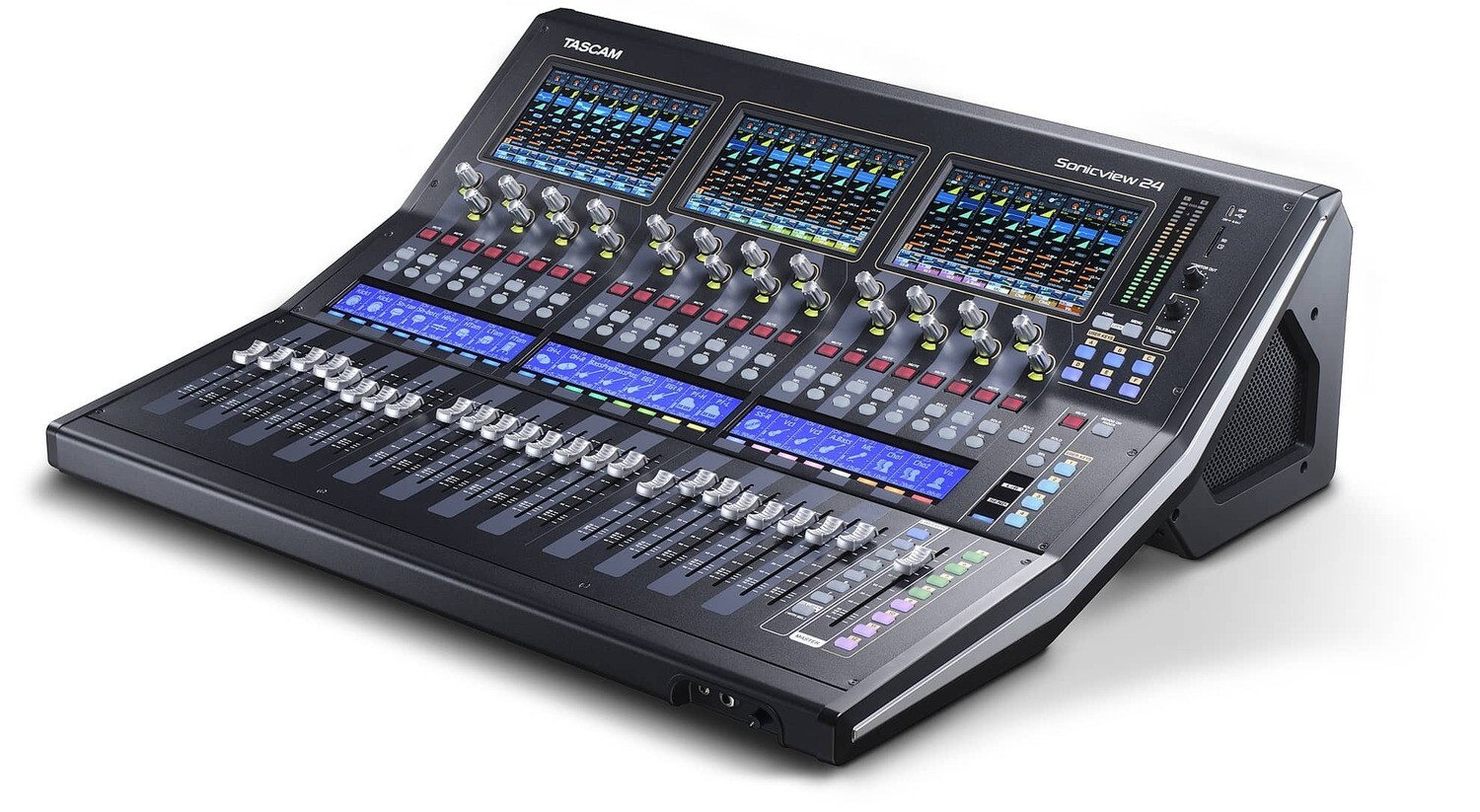

Tascam Sonicview 24 Interactive Digital Mixing Station

Store/調音台 | mixer/Digital mixer

Product Details

Key Features

Tascam VIEW (Visual Interactive Ergonomic Workflow) interface allows intuitive operation with three different view modes
Multiple displays with three 7-inch colour touchscreens
44 input channels (40 mono, 2 stereo)
22 flexible output buses plus main L/R bus with 31-band graphic EQ
54-bit float-point FPGA mixing engine, 96 kHz sampling rate
Ultra-low latency: 2× Fs (20.8 μs) in mixing engine, 0.51 ms analogue-to-analogue
32-bit/96 kHz A/D and D/A conversion
Tascam HDIA (High-Definition Instrumentation Architecture) microphone preamplifiers
Built-in Dante interface (64 inputs/outputs); supports redundancy, AES67, DDM and SMPTE 2110
32-bit/96 kHz USB audio interface (32 inputs/outputs)
24 mic/line inputs (up to +32 dBu), 16 XLR line outputs with flexible routing
Four multi-effects processors
Tascam Sonicview Control software for Windows, macOS and iPadOS enables remote control and off-line editing
Two Tascam expansion slots
- Optional 32-track SDXC recorder, MADI, AES/EBU and analogue I/O cards available for the second slot

Other Features

Operating systems for hardware mixing surface and mixing engine are independent of each other for high stability and continuous audio flow
Faders can be individually removed and replaced, top panel can be disassembled without disconnecting cables for easy servicing
Library for snapshots, effects, modules, parametric EQ, graphic EQ, gate, compressor
18 assignable user keys, seven custom fader layers, eight DCA groups
24+1 100-mm motorised faders
24 encoder knobs with colour LEDs
24 LC displays with colour LEDs for channel name, input level and gain reduction meter
Internal 2-track recording/playback with SD card or USB flash drive
8 TRS line inputs, 2 RCA stereo input pairs, XLR talkback input
XLR monitor outputs
Standard (6.3-mm) and mini (3.5-mm) headphones outputs
Word clock In, Out/Thru
1000BASE-T gigabit Ethernet
8-in/8-out GPIO on DB25 connector
TRS footswitch connector
XLR 4-31 lamp connector
Power switch with guard
Optional Dante-enabled stage box with 16 inputs/outputs (SB-16D)

Specifications

Mixer specifications
Processing capabilities
Inputs	52 audio channels (40 mono, 2 stereo, 4 stereo effect returns)
Busses	32 (22 Aux/Group switchable mix busses, 1 stereo main bus, 4 stereo send busses)
Built-in effects	4
Selectable signal sources
At 96 kHz	160 maximum
At 48 kHz	256 maximum
Mic/Line (XLR)	24
Line (RCA)	4 (2 × stereo)
Dante	32 (96 kHz), 64 (48 kHz)
Expansion cards	2 × 32 (96 kHz), 2 × 64 (48 kHz)
USB audio	32
Built-in player	2 (1 × stereo)
Oscillator	1
Talkback	1
Selectable output targets
At 96 kHz	148 maximum
At 48 kHz	244 maximum
Line (XLR)	16
Dante	32 (96 kHz), 64 (48 kHz)
Expansion cards	2 × 32 (96 kHz), 2 × 64 (48 kHz)
USB audio	32
Monitor output (analogue)	2 (1 × stereo)
Built-in recorder	2 (1 × stereo)
Inserts
Analogue insertion points	2 (Mic/Line inputs 15–16)
Digital signal processing
Mixing engine	54-bit floating-point, 96 kHz
A/D converters	32 bit, 96 kHz
D/A converters	24 bit, 96 kHz
Digital I/O sampling rate	96 kHz, 48 kHz

Analogue audio inputs and outputs
Mic/Line inputs (balanced, MIC/LINE)	XLR-3-31 (1: GND, 2: HOT, 3: COLD)
Maximum input level	+12 dBu (TRIM at minimum, Pad off) +32 dBu (TRIM at minimum, Pad on)
Minimum input level	–62 dBu (TRIM at maximum, Pad off) –42 dBu (TRIM at maximum, Pad on)
Input impedance	≥5 kΩ
Line inputs (balanced, LINE IN (BAL))	6.3-mm standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum input level	+12 dBu (TRIM at minimum, Pad off) +32 dBu (TRIM at minimum, Pad on)
Minimum input level	–62 dBu (TRIM at maximum, Pad off) –42 dBu (TRIM at maximum, Pad on)
Input impedance	≥5 kΩ
Inserts (INSERT)	6.3-mm standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum input level (Return)	+18 dBu
Nominal input level (Return)	–2 dBu
Input impedance (Return)	≥5 kΩ
Maximum output level (Send)	+18 dBu
Nominal output level (Send)	–2 dBu
Output impedance (Send)	≤100 Ω
Talkback input (TALKBACK)	XLR-3-31 (1: GND, 2: HOT, 3: COLD)
Maximum input level	+10 dBu
Minimum input level	–65 dBu
Gain adjustment range	0–55 dB
Input impedance	≥5 kΩ
Phantom power	+48 V available
Stereo inputs (ST IN 1-2 L/R)	RCA pin jacks
Maximum input level	+6 dBV (1.995 Vrms)
Nominal input level	–10 dBV (0.316 Vrms)
Headroom	16 dB
Input impedance	≥10 kΩ
Line outputs (OUTPUT 1–16)	XLR-3-32 (1: GND, 2: HOT, 3: COLD)
Maximum output level (selectable)	+15 dBu (Ref(D): –9 dBFS, Ref(A): +6 dBu) +18 dBu (Ref(D): –14 dBFS, Ref(A): +4 dBu) +20 dBu (Ref(D): –16 dBFS, Ref(A): +4 dBu) +18 dBu (Ref(D): –18 dBFS, Ref(A): 0 dBu) +20 dBu (Ref(D): –20 dBFS, Ref(A): 0 dBu) +22 dBu (Ref(D): –18 dBFS, Ref(A): +4 dBu) +24 dBu (Ref(D): –20 dBFS, Ref(A): +4 dBu)
Nominal output level (selectable)	+6 dBu (Ref(D): –9 dBFS) +4 dBu (Ref(D): –14 dBFS, –16 dBFS) +4 dBu or 0 dBu (Ref(D): –18 dBFS, –20 dBFS)
Output impedance	≤100 Ω
Monitor outputs (MONITOR OUT L/R)	XLR-3-32 (1: GND, 2: HOT, 3: COLD)
Maximum output level	+24 dBu
Nominal output level	+4 dBu
Output impedance	≤100 Ω
Headphones outputs (PHONES)	6.3-mm standard stereo jack, 3.5-mm stereo mini jack
Maximum output power	100 mW + 100 mW (32 Ω load, when connected to only one jack)

Digital audio inputs and outputs
USB audio	USB Type-B
Input (USB to Sonicview)	32 channels
Output (Sonicview to USB)	32 channels
Sampling rates	48 kHz, 96 kHz
Bit depth	32 bit
Dante PRIMARY/SECONDARY	etherCON Cat5e compatible
Number of audio channels	64 channels (48 kHz) 32 channels (96 kHz)
Supported modes	Redundant mode, Switched mode
Compatible standard	Gigabit Ethernet (1000BASE-T, IEEE 802.3ab)
Recommended cables	Cat5e STP or better

Control inputs and outputs
GPIO	25-pin D-sub (8-in/8-out, female, inch-standard)
Input circuit	Pull-up (5 V)
Output circuit	Open collector Output impedance: 10 Ω Voltage resistance: 20 V Maximum output current: 35 mA
Maximum supply current (+5 V)	50 mA
Footswitch connector (FOOTSWITCH)	6.3-mm standard TS jack (Tip: HOT, Sleeve: GND)
Network connector (ETHERNET)	RJ45
Compatible standards	100BASE-TX, 1000BASE-T
Protocol	TCP/IP
Wordclock input (WORD IN)	BNC
Input level	0.5–5 Vpp
Input impedance	75 Ω ±10% (termination on)
Input frequency	48 kHz, 96 kHz
Permissible frequency deviation	±100 ppm
Wordclock output (WORD THRU/OUT)	BNC
Output level	TTL level (5 V)
Output frequency	48 kHz, 96 kHz
USB port (top panel)	4-pin USB Type-C (for keyboard and mass storage)
Standard	USB 2.0 High Speed (480 Mbit/s)
Bus power	5 V, 0.5 A
Classes	HID, mass storage
USB port (rear panel)	USB Type-B (for audio interface, dedicated driver required)
Standard	USB 2.0 High Speed (480 Mbit/s)
Power output for lamp (LAMP)	XLR 4-pin female (pin 4: +12V, pin 3: GND)
Power supply voltage	DC 0–12 V (adjustable brightness)
Maximum output power	5 W

Audio performance
Mic amp EIN (equivalent input noise)	≤–128 dBu
Frequency response (Mic/Line input to Line output)	20 Hz – 40 kHz: +0 dB, –1.0 dB (JEITA)
Dynamic range	≥108 dB (Mic/Line input to Line output, PAD off, TRIM min., Ref(D) –20 dBFS, internal word clock, JEITA) ≥110 dB (Mic/Line input to Dante output, PAD off, TRIM min., internal word clock, JEITA) ≥112 dB (Dante input to Line output, PAD off, TRIM min., internal word clock, JEITA)
Distortion	≤0.002 % (Mic/Line input to Line output, +4 dBu input signal, PAD off, TRIM min., JEITA) ≤0.002 % (Mic/Line input to Dante output, +4 dBu input signal, PAD off, TRIM min., JEITA) ≤0.002 % (Dante input to Line output, 0 dBFS input signal, JEITA)
Crosstalk	≥–100 dB (Mic/Line input to Line output, 1 kHz sine wave, JEITA)
0 dBu = 0.775 Vrms⁪⁯⁮⁭ / Ref(D): Digital Reference Level

System requirements for connected computers
USB audio interface	64-bit Windows- or Mac-compatible computer with a USB 2.0 (or higher) port
Remote control	64-bit Windows- or Mac-compatible computer with network access, Apple iPad
Supported operating systems	see the separate section above

Recorder/Player specifications (with optional IF-MTR32 expansion card installed)
Storage media	SDHC cards (8–32 GB, Class 10 or better) SDXC cards (64–128 GB, Class 10 or better) USB flash drives (8–128 GB, playback only)
Note: A list of SD cards that have been confirmed for use with this unit can be found on our web site.
File systems	SDHC card, USB storage: FAT32 SDXC card, USB storage: exFAT
Recording/playback formats
WAV/BWF	Recording: 48 kHz, 96 kHz, 24 bit, 2 channels Playback: 48 kHz, 96 kHz, 16/24 bit, 2 channels
MP3	Playback: 44.1 kHz, 48 kHz, 32–320 kbit/s
AAC	Playback: 44.1 kHz, 48 kHz, 64–320 kbit/s

Power supply and other specifications
Main displays	3 7-inch (17,8 cm) colour touchscreens, 800 × 480 px
Channel displays	3 monochrome LC displays, 384 × 68 px
Mains power	AC 100–240 V, 50/60 Hz
Power consumption	85 W
Overall dimensions (width × height × depth)	691 mm × 228 mm × 554 mm
Weight	18 kg
Permissible operating temperature range	0–40 °C
