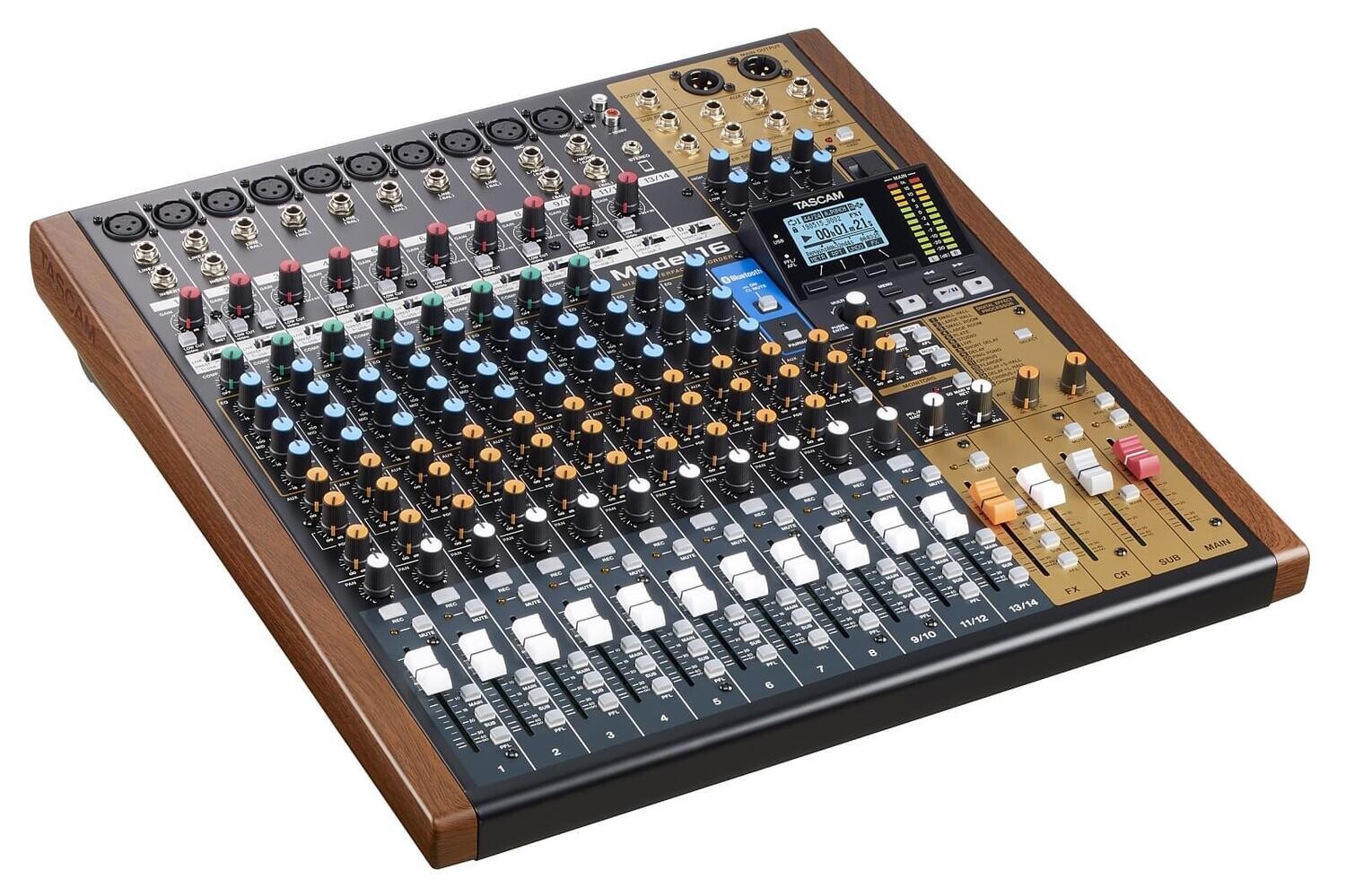

The Tascam Model 16 all-in-one mixer brings the flagship Model 24's powerful recording and mixing features and functionality to a new level of compactness and affordability, creating a fully featured compact mixer that combines the warmth of analogue with a digital workflow. The Model 16 is the perfect mixing solution for small-format live performance, recording and production environments, featuring a multi-track recorder, USB audio interface, effects, comprehensive mixing and routing capabilities, and Bluetooth wireless.
With the Model 16, your perfect mix has met its match.
Recorder | |
---|---|
Recording media | SD (512 MB – 2 GB) SDHC (4–32 GB) SDXC (64–512 GB) Class 10 or higher required |
File system | FAT16 (SD), FAT32 (SDHC), exFAT (SDXC) |
Recording file format | WAV (BWF, maximum file size: 2 GB) |
Playback formats | WAV (BWF) |
Sampling frequency | 44.1 kHz, 48 kHz |
Bit depth | 16 bit, 24 bit |
Recordable channels | 16 channels max. (14 channels + stereo mix) |
Audio inputs and outputs | |
---|---|
Microphone inputs (CH 1–8,9,11) | XLR-3-31, balanced (1: GND, 2: HOT, 3: COLD) |
Maximum input level | +10 dBu |
Nominal input level | –8 dBu |
Minimum input level | –58 dBu |
Gain adjustable range | 0–50 dB |
Input impedance | 1.8 kΩ |
LINE inputs (CH 1–8) | 6.3-mm TRS phone jack, balanced |
Maximum input level | +22 dBu |
Nominal input level | +4 dBu |
Gain adjustable range | –10 dB to +40 dB (CH 1–8) –20 dB to +30 dB (CH 9, 11) |
Input impedance | 22 kΩ |
INSERT (CH 1–2) | 6.3-mm TRS phone jack (Tip: Send, Ring: Return, Sleeve: GND) |
Nominal input level | 0 dBu |
Maximum input level | +18 dBu |
Input impedance | 10 kΩ |
Nominal output level | 0 dBu |
Maximum output level | +18 dBu |
Output impedance | 100 Ω |
STEREO inputs (CH 13-14) | RCA pin jack, unbalanced 3.5-mm stereo mini jack, unbalanced |
Maximum input level | +8 dBV |
Nominal input level | –10 dBV |
Input impedance | 10 kΩ |
MAIN output | XLR-3-32, balanced (1: GND, 2: HOT, 3:COLD) |
Maximum output level | +4 dBu |
Nominal output level | +22 dBu |
Output impedance | 200 Ω |
SUB OUT, MONITOR, FX OUT, CONTROL ROOM OUT | 6.3-mm TRS, balanced (Tip: HOT, Ring: COLD, Sleeve: GND) |
Nominal output level | –2 dBu |
Maximum output level | +16 dBu |
Output impedance | 200 Ω |
PHONES OUT | 6.3-mm stereo phone jack |
Maximum output power | 80 mW + 80 mW (at 32 Ω) |
Working impedance | 16–600 Ω |
Channel EQ | |
Low cut | 100 Hz, –18 dB/Oct. |
High (shelving) | 12 kHz, ±15 dB |
Mid (peaking) | variable 100 Hz to 8 kHz, ±15 dB (Mono) fixed 600 Hz, ±15 dB (Stereo) Q = 0.55 |
Low (shelving) | 80 Hz, ±15 dB |
Master EQ | |
High (shelving) | 10 kHz, ±15 dB |
Mid (wide) | variable 100 Hz to 8 kHz, ±15 dB (Mono), Q = 0.5 |
Mid (narrow) | variable 100 Hz to 8 kHz, ±15 dB (Mono), Q = 5 |
Footswitch connector | 6.3-mm TS phone jack (Tascam genuine footswitch RC-1F recommended) |
Audio performance | |
---|---|
Residual output noise | –100 dBu (MAIN OUT, MAIN fader at min.) |
Equivalent input noise (EIN) | –128 dBu (Mono input channel at 150 Ω, GAIN at max.) |
Total harmonic distortion (THD+N) | <0.01 % (MIC IN-> MAIN OUT, 1 kHz, GAIN at min., +10 dBu) <0.004 % (MIC IN-> MAIN OUT, 1 kHz, GAIN at min., +4 dBu) |
Frequency response | Analogue: 20 Hz to 30 kHz, +0.5/–1.0 dB Digital: 20 Hz to 20 kHz, +0.5/–1.0 dB |
Channel crosstalk | –80 dB (1 kHz, PAN fully counter-clockwise / fully clockwise) |
Maximum gain | 74 dB (MIC to MAIN OUT) 54 dB (MIC to INSERT OUT) 74 dB (MIC to SUB OUT) 79 dB (MIC to CR OUT) 75 dB (MIC to MONITOR OUT) 75 dB (MIC to FX OUT) 24 dB (USB/SD to MAIN OUT) (all EQs flat, PAN fully counter-clockwise / fully clockwise, GAIN knobs at max.) |
Phantom Power | DC 48 V |
Computer hardware requirements | |
---|---|
Windows | Windows-compatible computer with a USB 2.0 port |
CPU type/speed | Dual core, 2 GHz or faster |
Memory | 2 GB or more |
Drivers | USB Audio Class 2.0, ASIO 2.0, WDM (MME) |
Screen resolution | 1280 px × 800 px or more |
Macintosh | Apple Mac computer with a USB 2.0 port (operation confirmed with Intel and Apple Silicon M1 or M2) |
CPU type/speed | Dual core, 2 GHz or faster |
Memory | 2 GB or more |
Driver | Core Audio |
Screen resolution | 1280 px × 800 px or more |
Power supply and other specifications | |
---|---|
Power | AC 100–240 V, 50/60 Hz |
Power consumption | 40 W |
Dimensions (W × D × H, overall) | 430 mm × 463 mm × 113 mm |
Weight | 7 kg |
Permissible operating temperature range | 5–35 °C |
Included items | AC power cord, Owner’s manual incl. warranty, TASCAM ID registration guide |
