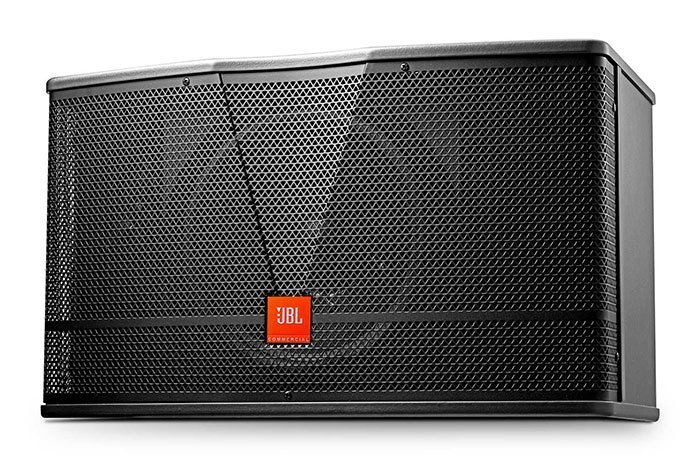

Name: JBL CV1652T (6.5 Inch 2-Way Full Range Loudspeaker System)
Brand: JBL
SKU: 01274
Availability: InStock

Pro Audio / 錄音器材 / 零售批發 / Shure 產品 (香港及澳門) 代理商 / Harman 產品 (香港及澳門) 代理商: JBL 及 Crown / QSC 香港代理
發售及安裝各類 PA系統

8103-0308

JBL CV1652T (6.5 Inch 2-Way Full Range Loudspeaker System)

01274

HK$0.00

In stock

Quantity:

Product Details

Brand: JBL

6.5 Inch 2-Way Full Range Loudspeaker System

CV1652T is a two-way full-range speaker designed for restaurants, conference rooms, music cafes, hotels, etc. Its especially wide coverage pattern (150°×120°) makes it a perfect choice for installations where the ceiling height is relatively limited.

FEATURES

Specially designed 6.5” high performance woofer provides greater power handling and is fitted with demodulating aluminum ring for lower distortion and power compression
Two (2) 3” paper cone tweeters provide excellent high-frequency response and superb vocal reproduction
MDF (medium density fiberboard) enclosure with vinyl finish provides grand appearance and durability
Precisely designed crossover optimizes the frequency response and provides smooth and accurate music reproduction
Built-in high quality multi-tap 70V/100V transformer
150°×120°coverage pattern for even and smooth response on and off axis
Ideal for installations with limited ceiling height
Rotatable JBL COMMERCIAL logo for easy coherence to your installation
White (-WH) color available upon request

APPLICATIONS

Sound reinforcement for restaurants, conference rooms, hotels, cafes, halls, school rooms, etc.
High-performance satellite speaker for use with subwoofers.

SPECIFICATIONS

	System Type	6.5”,2-way,bass-reflex
	Frequency Range (-10 dB)	65 Hz – 18 kHz
	Frequency Response (±3 dB)	75 Hz – 15 kHz
	Sensitivity(1W@1m)	90 dB
	Nominal Impedance	8Ω(at 8Ω tap setting)
	Maximum SPL(1m)	112 dBcontinuous average (118 dB peak) (at 8Ωtap setting)
	Power Rating (Continuous/Program/Peak)	150 W / 300 W / 600 W(at 8Ω tap setting)
	Coverage	150°×120° (H × V)
	Transformer Tap	8 Ohms, 70V(7.5W/15W/30W/60W), 100V(15W/30W/60W)
	Insert Loss	<1.0 dB at any tap setting
	LF Driver	1 × 6.5” woofer
	HF Driver	2 × 3” paper cone tweeter
	Enclosure	Trapezoid,12 mm MDF
	Suspension	2 × M10 threaded suspension points
	Finish	Vinyl laminated, black. White(-WH) available upon request.
	Grille	Powder coated, 1.0 mm perforated steel
	Input Connector	Dual RED/BALCK connector in parallel for loop-through.
	Dimensions (H × W × D )	221 mm × 405.4 mm × 250 mm (8.7 in × 16.0 in × 9.8 in)
	Net Weight	7.5 kg (16.5 lbs)
