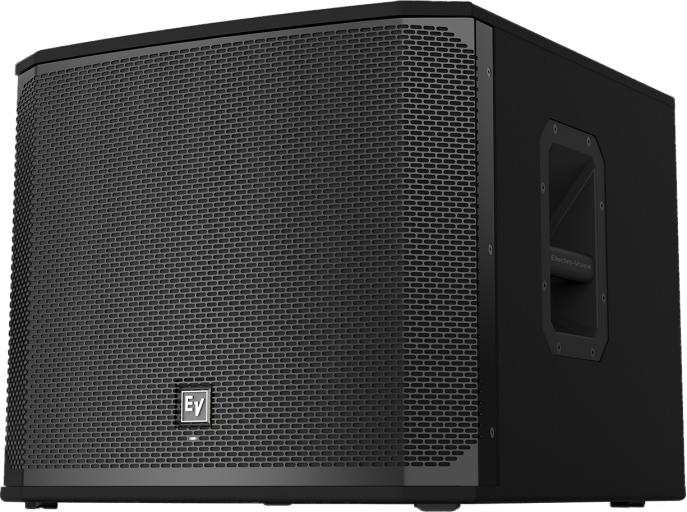

EKX-18S

18" Passive Subwoofer

• 1600 W (peak), 134 dB peak SPL on the EKX-18S utilizing highsensitivity transducers designed and engineered by EV.
• Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
• Large slot ports for low distortion and excellent bass extension.
• Metal grille reinforcement bar (two bars on the EKX-18S).
• M20 threaded pole mount plate.

---

SPECIFICATIONS

Frequency Range (-10 dB)	35 Hz - 300kHz (Half Space Measurement)
Weight Net	70.11lbs (31.8kg)
Depth	24.09" (612mm)

SPECIFICATIONS

Width	23.86" (606mm)
Height	20.47" (520mm)
Axial Sensitivity (SPL, 1 W @ 1 m)	96dB
Connector Type	Dual NL4
Enclosure Material	15 mm, plywood with EVCoat
Family	EKX
Frequency Response (-3 dB)	50 Hz - 100kHz (Half Space Measurement)
Grille	18 AWG steel with powdercoat
LF Transducer	EVS-18C 457 mm (18 in)
Max. SPL/1m (calc)	134dB
Maximum SPL	134dB
Minimum Impedance	7.0Ω
Nominal Impedance	8Ω
Passive Power Handling	1600W peak
Power Handling (Continuous / Peak)	400 W/1600W
Power Rating	1600W
Powered or Passive	Passive
Recommended High-Pass Frequency	30Hz
Shipping Weight	88.41lbs (40.1kg)
Speaker Type	Subwoofer
Woofer Size	18inch
