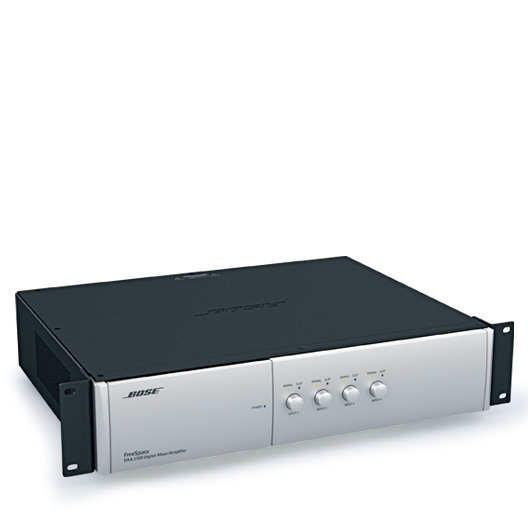

Technical Summary

Amplifier Power
2 x 120 W at 4 ohms , 2 x 65 W at 8 ohms, or 2 x 100 W at 70/100V

Signal-to-Noise Ratio
75 dB (below rated power, A-weighted)

THD
≤0.5 % (at full rated power)

Dynamic Range
80 dB

Output Channels
2 channels

Input Channels
Mic/Line Inputs: 4 balanced
Line Inputs: 4 unbalanced
Page Inputs: 1 balanced
Direct Inputs: 1 balanced

Applications

• Conference centers
• Retail stores
• Restaurants and bars
• Hotels
• Lobbies and conference rooms

Key Features

• Six inputs: four mic/line inputs with choice of balanced Euroblock or unbalanced RCA connectors, one page input and one direct input
• Two powered outputs that can operate at high or low impedance: 2 x 120 W at 4 ohms , 2 x 65 W at 8 ohms, or 2 x 100 W at 70/100V
• Three operating modes for greater flexibility in installed music or speech applications: Mixer Mode, Dual Mono Select Mode, and Stereo Select Mode
• Easy setup and control via onboard controls – no computer needed
• DSP includes loudspeaker EQs and dynamic EQ functions engineered specifically for Bose loudspeakers
• Opti-voice® paging provides a smooth transition between music and announcements
• 24-volt DC backup power connection for added reliability and integration onto fire and evacuation systems

Physical

Dimensions
3.5" H x 16.5" W x 13.8" D (90 mm x 420 mm x 349 mm)

Net Weight
32 lb (14.4 kg)
