Features

A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.

Specifications

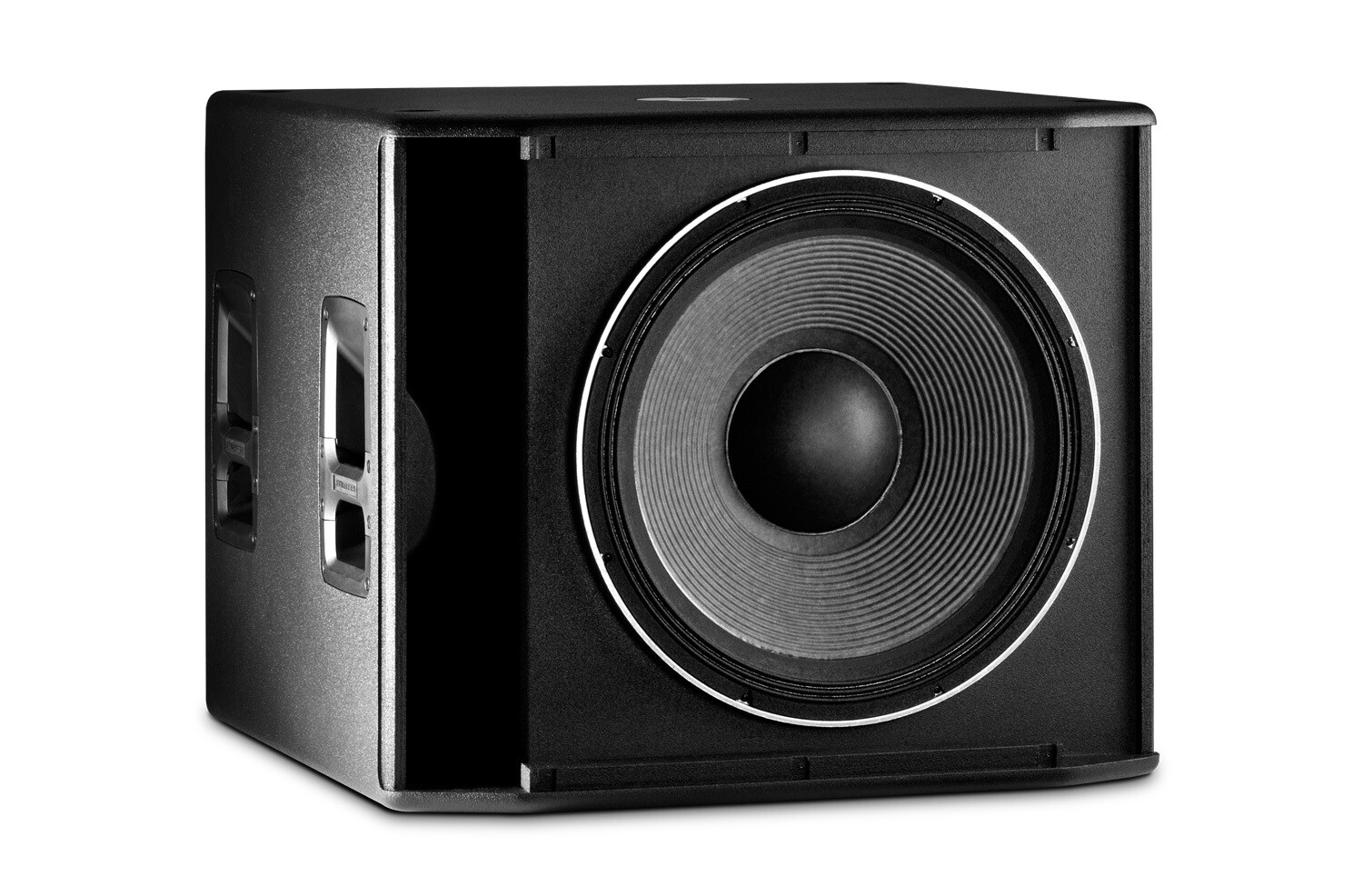

System Type	Self powered 18”, subwoofer system
Maximum SPL (1m)	135 dB
Frequency Response (-10dB)	29 Hz - 150 Hz
Frequency Response (-3 dB)	35 Hz - 120 Hz
Amplifier Design	Class D
Power Rating	1000 W Peak
Dimensions (H x W x D)	683mm x 684mm x 575mm (26.89in x 26.92in x 22.62in)
Net Weight (each)	39.5 kg (87 lb)
EQ	20 parametric EQ's, speaker delay, and 50 available slots for presets
Inputs	Neutrik ¼ - XLR input; Neutrik XLR Output
Outputs	2 x XLR
Enclosure	18 mm Duraflex coated plywood
LF Driver	1 x 18 in Differential Drive®
System Processing	DSP based, resident in Input Module
