Description

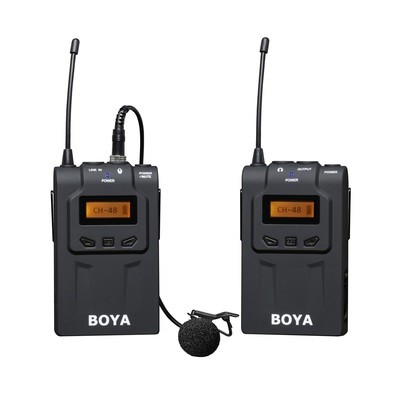

The BOYA BY-WM5 wireless microphone is compact, high performance, lightweight, and compatible with DSLR cameras, camcorders, audio recorder etc. It features experience more freedom of movement while recording, excellent sound quality, great portability, easy setup, two way communication system, and approximate 50m(164 ft.) operation range. It consists of a transmitter, receiver, two piece of earphone( one is with speaker), an audio signal cable, a lavalier/lapel microphone

Status of the communication indicator

Status :Receiver Transmitter
Unit is turned ON: Flashing
Wireless communication is established: Flashing continually every 2.5 seconds
Receiver unit is turned OFF(Transmitter is still ON) Off: Flashing
Transmitter unit is turned OFF(Receiver is still ON) Flashing Off
Low power Flashing in red

Specification:
RF Modulation: GFSK (Gauss frequency Shift Keying)
Frequency band: 2.4GHz (2405-2478MHz)
Frequency response: 35Hz-14KH±3dB
Signal/Noise: 76dB or more
Distortion: 0.1% or less (32Ω,1 KHz,65mW output)
RF output level: 5 mW
Earphone output level: 32Ω,65mW
Reception sensitivity: -85dB +/- 3dB / 0dB=1V/Pa, 1kHz
Audio input connector: 3.5mm mini jack
Operation range: 50m (164ft.)
Power requirements: 3.0V DC (Two LR03/AAA size batteries)
Consumption power: Transmitter: 3.3V/110 mA
Receiver: 3.3V/100 mA
Battery life: Transmitter: Approx. 3.5 hours
Receiver: Approx. 4 hours

Package Content

1 * Transmitter
1 * Receiver
2 * Earphone (one is with speaker)
1 * Audio signal cable
1 * Lavalier/lapel microphone
1 * User Manual(Chinese&English)
